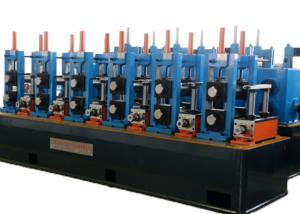

High Precision Pipe Making Machine With Low Energy Consumption Square Tube Mill
Production Description
The Square Tubing Mill, also known as Square Tube Mill or Square Tubular Mill, is used for the production of square tubes with a size range of 100x100mm to 200x200mm and a length range of 6m to 12m by means of high frequency welding. This product is equipped with a horizontal accumulator which helps to achieve a higher production rate and higher output quality. It is widely used in the manufacturing industry and is made from steel material. The Square Pipe Making Machine offers excellent performance, great precision, and superior durability.
Technical Parameters:
| Product Name: | High Precision Square Pipe Making Machine with Low Energy Consumption |
| Voltage | 380V/50Hz/3Phase |
| Welding Power | 300KW |
| Welding Method | High Frequency |
| Type | Square tube mill |
| Cooling System | Water Cooling |
| Tolerance | ±0.02mm |
Applications:
TENGTIAN Square Tube Mill – Perfect Solution for Square Tubing Applications
The TENGTIAN Square Tube Mill is a perfect solution for the production of square tubing. It features a model number of 100mm*100mm, and has been carefully designed to meet the highest standards for quality. It has a wide range of sizes from 40*40 to 110*110, and its length can range from 6-12m with a thickness of 1.0-4.5 mm. The speed of the Square Tube Mill is 30-80m/min, making it highly efficient and providing a superior quality product. The Square Tube Mill is packed in standard export packing for safe transportation and storage.
The TENGTIAN Square Tube Mill is the optional choice for a variety of applications where square tubing is required, such as in the construction of furniture, fitness equipment, metal structures and more. It offers a reliable and efficient production process that provides superior quality products that are sure to meet the highest standards. It is the perfect solution for any square tubing application, providing a reliable and efficient solution for customers.
Customization:
We provide customized services for Square Tubular Mill, Square Tubing Rolling Mill, and Square Tubular Mill Line. Our products are branded as TENGTIAN with model number 200X200. They are made in China with speed of 30-80m/min, thickness of 1.0-4.5mm, horizontal accumulator, length of 6-12m, and material of steel.
Working Process
Coil Car→Uncoiler→Pinching and Leveing→Shearing and Butt-welding→Loop Storage→Edge Moving→Forming→Welding→IF Annealing→Water Cooling→Online NDT Treating→Sizing→Cutting→Straightening→End-facing and beveling→Hydrostaic Testing→Product Inspection→Weight and Measuring→Painting and Marking→Storage→Packing
Support and Services:
High Precision Square Pipe Making Machine with Low Energy Consumption:
1) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3) We supply the pre-sell and after-sell service.
Pre-sell service: workshop design, and production output design
After-sell service: installation and training, and the skilled engineer for working.
Packing and Shipping:
Precision Tube Mill packaging and shipping:
- All Precision Tube Mills are securely packaged in wooden crates or boxes.
- All packages are labeled with the item's part number, description, and quantity.
- Packages are shipped via ground or air freight, depending on the size and weight of the shipment.
- All shipments are insured for the full value of the items
