HF Welded Pipe Production Line for 16-76mm Round Steel Tubes

Name: HF Welded Pipe Production Line for 1676mm Round Steel Tubes
Brand: TENGYIAN
Price: 100000 USD

Wholesale HF Welded Pipe Production Line for 16-76mm Round Steel Tubes from china suppliers

Brand Name : TENGYIAN

Model Number : HG60

Place of Origin : CHINA

MOQ : 1SET

Price : $100000 to $1 million

Payment Terms : L/C,T/T,Western Union,MoneyGram

Supply Ability : 100sets one year

Delivery Time : three months

Packaging Details : packed in seaworthy material

Certification : ISO9001,BV,CE

product name : round steel tube mill professional manufacture HF welded pipe production line

Pipe material : Carbon Steel,Stainless Steel

Application : Energy Supply Pipe,Natural gas,Petroleum

Condition : New

Voltage : 380V/220V

Weight : about 10 tons

Pipe diameter : 16-76mm

Thickness : 0.7-2.5mm

Speed : 30-80M/min according to diameter and wall thickness

keywoords : welded pipe production line

Contact Now

HG60 welding round stainless steel tube mill professional manufacture HF welded pipe production line for round tube

High frequency tube Straight Seam Welding Pipe Mill, Pipe making machine

1. Description

This equipment is specially used for producingΦ20-Φ80mm, δ0.5-2.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm,1.2-3.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be according to suitable range of pipe diameter and wall thickness.

2. Applicable material:

1 Raw material: Low-carbon steel,

2 Thickness of steel strip: 1.0-3.5mm

3 The width of steel strip: 60-240mm
4 I.D. of steel coil: Φ450-Φ550mm
5 O.D. of steel coil: Φ800-Φ1200mm
6 Maximum weight coil: 2500kgs

3. Dimension range of processing steel tube:

1 O.D of pipe: Φ20-Φ80mm
2 Wall thickness: 1.0-3.5mm (square pipe :1.2-3.0mm)

3 Length: 4-8m
4 Milling speed: 60-70m/min
5 High-frequency equipment power: 250 KW (Solid state)
6 Voltage:380V/440V,50HZ

4. Milling speed: 20-100M/min(choose different speed as per different pipe diameter and thickness)

5. Product (steel tube) process flow:

Raw material (steel coil) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finishing tube

After-sales Service Provided	Engineers available to service machinery overseas
Warranty	1 year
Certification	ISO9001:2010
Application	Used in Decoration,Furniture,Household, hand railing , industrial area etc
Pipe Material	Stainless steel / Carbon steel / Iron / Aluminum / Copper/ Galvanize etc
Type	Pipe mill
Diameter	12-76mm
Thickness	0.3-2.0mm
Horizontal shaft	50mm
Vertical shaft	30mm
Pipe shape	Round / Square / Rectangle
Welding type	Argon welding

Product Tags:

erw tube mill

slitting line machine

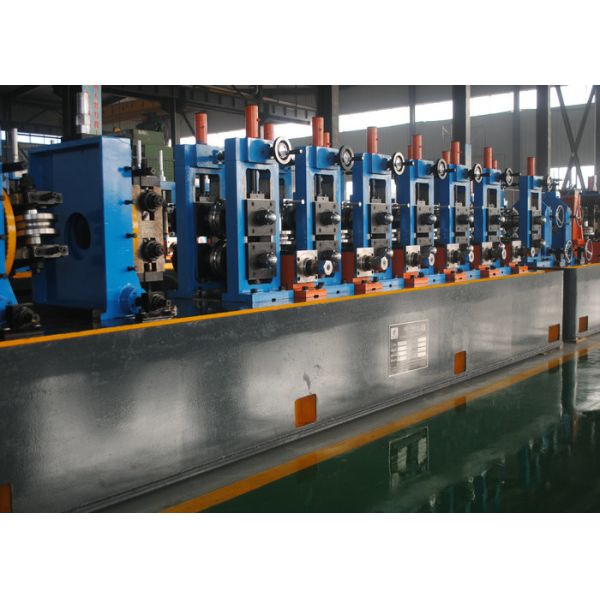

HF Welded Pipe Production Line for 16-76mm Round Steel Tubes Images
